ART. 10143Repair kitOn/off valve

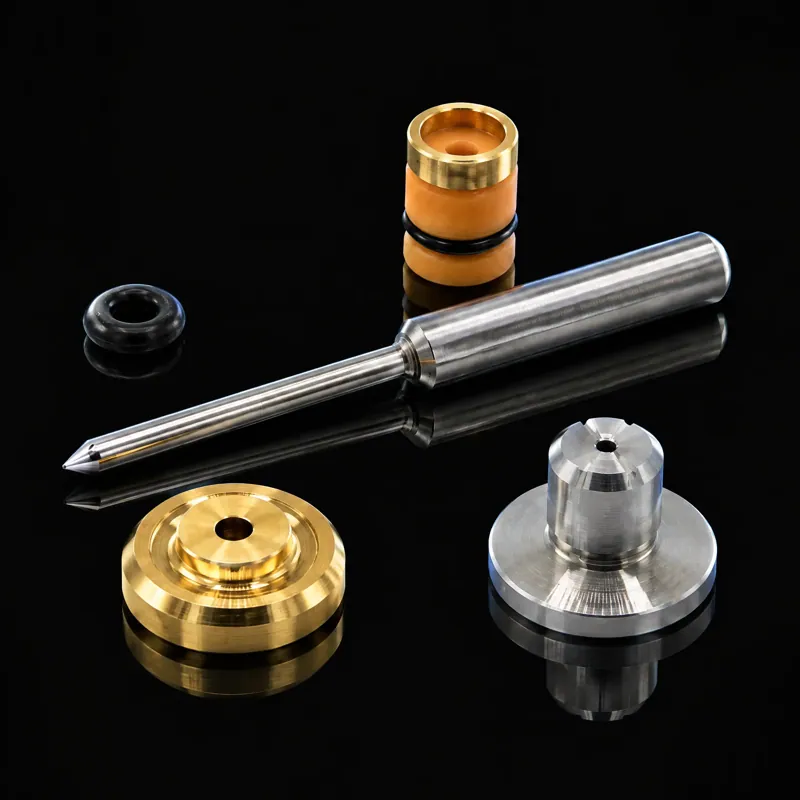

Repair Kit - HP Pneumatic Valve , S13325
Specification & cross-reference
Replaces OEM part no.OEM S13325 · OEM S13281
Other references104426 · 12967 · 1-11241 · 10199000 · 100230036
Fits brandsKMT
Fits pump modelsAsk us
AssemblyOn/off valve
Part typeRepair kit
Weight13 g
Full description
OEM Part Number S13325, S13281 incl. Part No. 10001,10002, 10003,10004 10019, 10022, Round top and 60 degr. tip on the stem Other references: 104426, 12967, 1-11241,10199000,100230036 USE tool 11099 when installing!
Aftermarket part, not an original (OEM) part. Not made or approved by the original manufacturer. Brand names and part numbers only show compatibility.
More On/off valve parts
| Photo | Art. no. | Description | Excl. VAT | |
|---|---|---|---|---|
 | 10001 | Stem, Pneumatic Valve, 49865843
StemKMT, Techni |
€ 50.40 | |
 | 10002 | Back-up ring, Pneumatic Valve, 10188233
Back-up ringKMT, Techni |
€ 13.20 | |
 | 10003 | Bearing Disk, Pneumatic Valve, 10187250
Bushing & ringKMT, Techni |
€ 15.60 | |
 | 10004 | Seat, Pneumatic Valve, 10178697
SeatKMT, Techni |
€ 24.96 | |
 | 10005 | Valve Body, Pneumatic Valve, 10189181
Valve bodyKMT |
€ 279.60 | |
 | 10008 | Gland nut, Pneumatic valve, 49894249
NutKMT |
€ 66.30 |
Related parts (8)
- Stem, Pneumatic Valve, 49865843 Art. 10001 · OEM KMT 49865843 · € 50.40
- Back-up ring, Pneumatic Valve, 10188233 Art. 10002 · OEM KMT 10188233 · € 13.20
- Bearing Disk, Pneumatic Valve, 10187250 Art. 10003 · OEM KMT 10187250 · € 15.60
- Seat, Pneumatic Valve, 10178697 Art. 10004 · OEM KMT 10178697 · € 24.96
- Valve Body, Pneumatic Valve, 10189181 Art. 10005 · OEM KMT 10189181 · € 279.60
- Gland nut, Pneumatic valve, 49894249 Art. 10008 · OEM KMT 49894249, KMT BV701184 · € 66.30
Actuator cylinder, Pneumatic valve N/C, 10176543 Art. 10009 · OEM KMT 10176543 · € 108.00
O-ring Valve Actuator, 10177806 Art. 10016 · OEM KMT 10177806 · € 1.32
