ART. 12346Back-up ringHP cylinder & seals

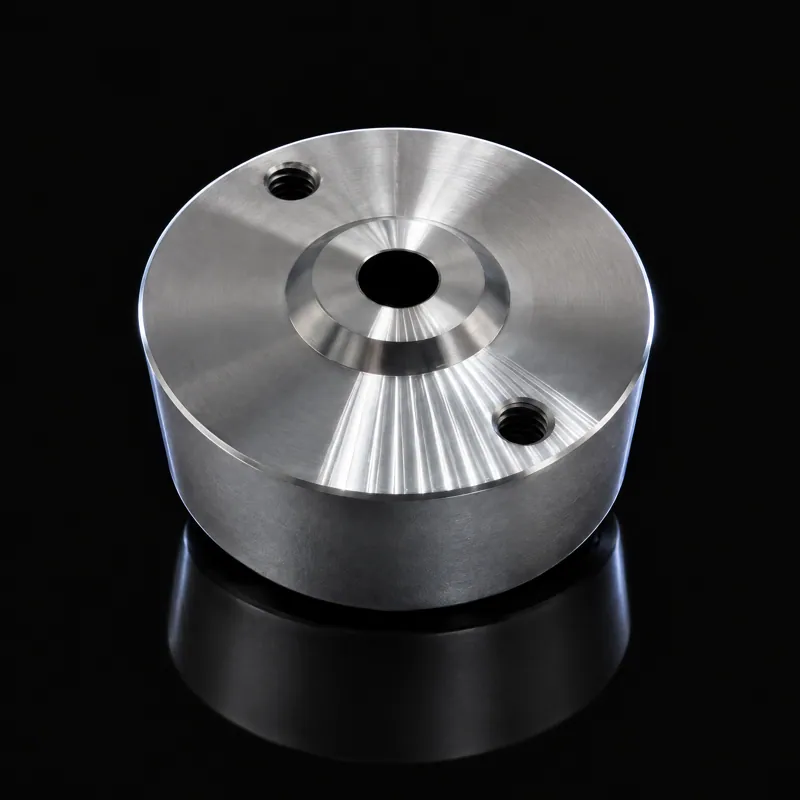

Backup Ring Assembly, E-Max, 308107
Specification & cross-reference
Replaces OEM part no.OMAX 308107
Other references—
Fits brandsOMAX
Fits pump modelsEnduroMAX
AssemblyHP cylinder & seals
Part typeBack-up ring
Weight351 g
Full description
OMAX part number: 308107
Aftermarket part, not an original (OEM) part. Not made or approved by the original manufacturer. Brand names and part numbers only show compatibility.
