Cutting heads
These heads look the same from the outside; the inside differs. Choose your machine brand, then the head and the orifice size.
Which machine brand do you have?

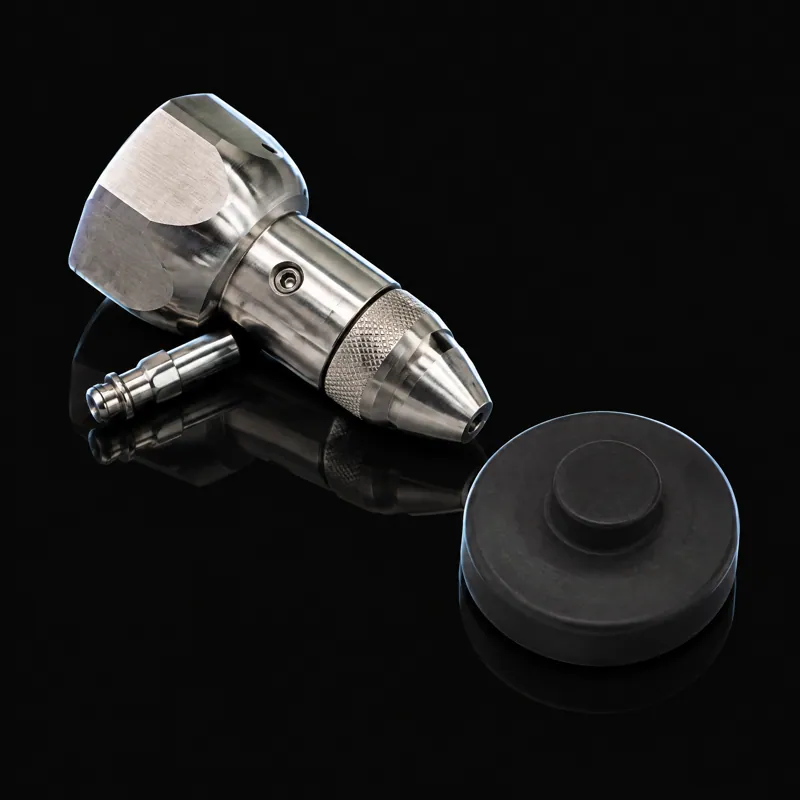

Slice 2 head, right-hand version.
Cutting head · KMT
Slice 2 cutting head, right hand
Fits KMT.1 · Head
2 · Orifice size
The orifice is built into the head. Not sure which size? It is usually printed on the head or the box.
€ 764.40
per head, excl. VAT · art. 11289
per head, excl. VAT · art. 11289
- Head
- Slice 2 cutting head, right hand
- Orifice
- 0.013" · 0.33 mm
- Replaces OEM
- 33mm
- Art. no.
- 11289

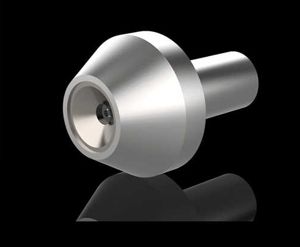

Mounted orifices
Pick the mount of your cutting head, how you cut, the jewel material and the bore. Bores follow the inch standard; mm shown for reference.
1 · Mount type

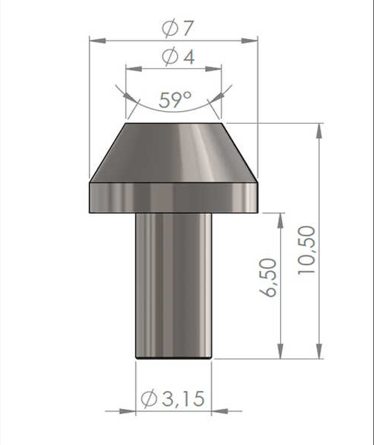

FIG. 1 — TYPE 10, MM
Check your mount
Head Ø7.00
Cone59°
Stem Ø3.15
Stem length6.50
Height10.50
2 · Material
Diamond for:
3 · Bore size
Compare all sizes and prices
All sizes, Type 10 — Diamond water + abrasive
Click a price to select| Bore | Sapphire | tetraCORE | Diamond | Black Cobra |
|---|---|---|---|---|
| 0.004"0.102 mm | ||||
| 0.005"0.127 mm | ||||
| 0.006"0.152 mm | ||||
| 0.007"0.178 mm | ||||
| 0.008"0.203 mm | ||||
| 0.009"0.229 mm | ||||
| 0.010"0.254 mm | — | |||
| 0.011"0.279 mm | ||||
| 0.012"0.305 mm | ||||
| 0.013"0.330 mm | — | |||
| 0.014"0.356 mm | — | |||
| 0.015"0.381 mm | — | — | — | |
| 0.016"0.406 mm | ||||
| 0.017"0.432 mm | — | — | — | |
| 0.018"0.457 mm | — | — | — | |
| 0.019"0.483 mm | — | — | — | |
| 0.020"0.508 mm | — | — | — | |
| 0.021"0.533 mm | — | — | — | |
| 0.022"0.559 mm | — | — | — |
Focusing tubes
Also called mixing tubes. Enter the size printed on your old tube, or choose your machine brand and tube type.
ROCTEC® focusing tubes
ROCTEC® is a composite carbide made for abrasive waterjet focusing tubes. ROCTEC® 100 is the standard grade; ROCTEC® 500 is the premium grade, made for a longer service life.
Size finder · OD × bore × length
?×?×?mm
Know the size printed on your old tube? Enter it and we show the right tube.
Which machine brand do you have?

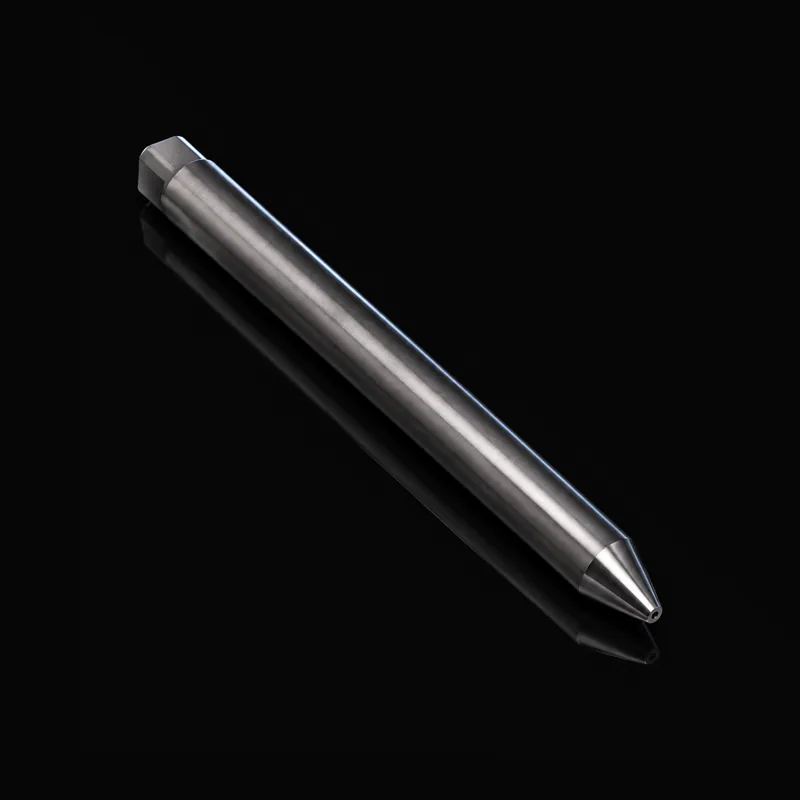

Hypertube · Ø 9.45 mm · 3/8" · Square top end. Turn it a quarter turn in the head for even wear.
Focusing tube · KMT
Hypertube Ø 9.45 mm · 3/8"
Fits KMT.1 · Type
2 · Bore
Bore = inner diameter. Rule of thumb: about 3 × your orifice; a 0.30 mm orifice usually runs with a 0.91–1.02 mm tube.
3 · Length
€ 150.00
per tube, excl. VAT · art. 11761
per tube, excl. VAT · art. 11761
- Outer diameter
- Ø 9.45 mm · 3/8"
- Bore
- 1.02 mm · 0.040"
- Length
- 76.2 mm (3")
- Top end
- Square top end. Turn it a quarter turn in the head for even wear
- Grade
- Hypertube
HP tubing, cut to your length
Autofrettaged high-pressure tubing. Choose size, pressure rating and length. We cut, cone and thread it for you.
1 · Outer diameter
2 · Pressure rating
cm
4 · Coning & thread
Your tube
Outer diameter3/8"
Pressure rating60K · 4,100 bar
Length100 cm
Coning & threadBoth ends coned & threaded
€ 121.00
per tube, excl. VAT · 100 cm × € 81.00/m + 2 × € 20.00 coned & threaded end
Cut, coned and threaded to order. Bent tubes for specific machines are sold as separate parts.
