Cutting heads
These heads look the same from the outside; the inside differs. Choose your machine brand, then the head and the orifice size.
Which machine brand do you have?
Mounted orifices
Pick the mount of your cutting head, how you cut, the jewel material and the bore. Bores follow the inch standard; mm shown for reference.
1 · Mount type
FIG. 1 — TYPE 10, MM
Check your mount
Head Ø7.00
Cone59°
Stem Ø3.15
Stem length6.50
Height10.50
2 · Material
Diamond for:
3 · Bore size
Compare all sizes and prices
All sizes, Type 10 — Diamond water + abrasive
Click a price to select| Bore | Sapphire | tetraCORE | Diamond | Black Cobra |
|---|---|---|---|---|
| 0.004"0.102 mm | ||||
| 0.005"0.127 mm | ||||
| 0.006"0.152 mm | ||||
| 0.007"0.178 mm | ||||
| 0.008"0.203 mm | ||||
| 0.009"0.229 mm | ||||
| 0.010"0.254 mm | — | |||
| 0.011"0.279 mm | ||||
| 0.012"0.305 mm | ||||
| 0.013"0.330 mm | — | |||
| 0.014"0.356 mm | — | |||
| 0.015"0.381 mm | — | — | — | |
| 0.016"0.406 mm | ||||
| 0.017"0.432 mm | — | — | — | |
| 0.018"0.457 mm | — | — | — | |
| 0.019"0.483 mm | — | — | — | |
| 0.020"0.508 mm | — | — | — | |
| 0.021"0.533 mm | — | — | — | |
| 0.022"0.559 mm | — | — | — |
Focusing tubes
Also called mixing tubes. Enter the size printed on your old tube, or choose your machine brand and tube type.
ROCTEC® focusing tubes
ROCTEC® is a composite carbide made for abrasive waterjet focusing tubes. ROCTEC® 100 is the standard grade; ROCTEC® 500 is the premium grade, made for a longer service life.
Size finder · OD × bore × length
?×?×?mm
Know the size printed on your old tube? Enter it and we show the right tube.
Which machine brand do you have?
ROCTEC 500 · with locating ring · Ø 7.14 mm · 9/32" · Performance locating ring fitted.

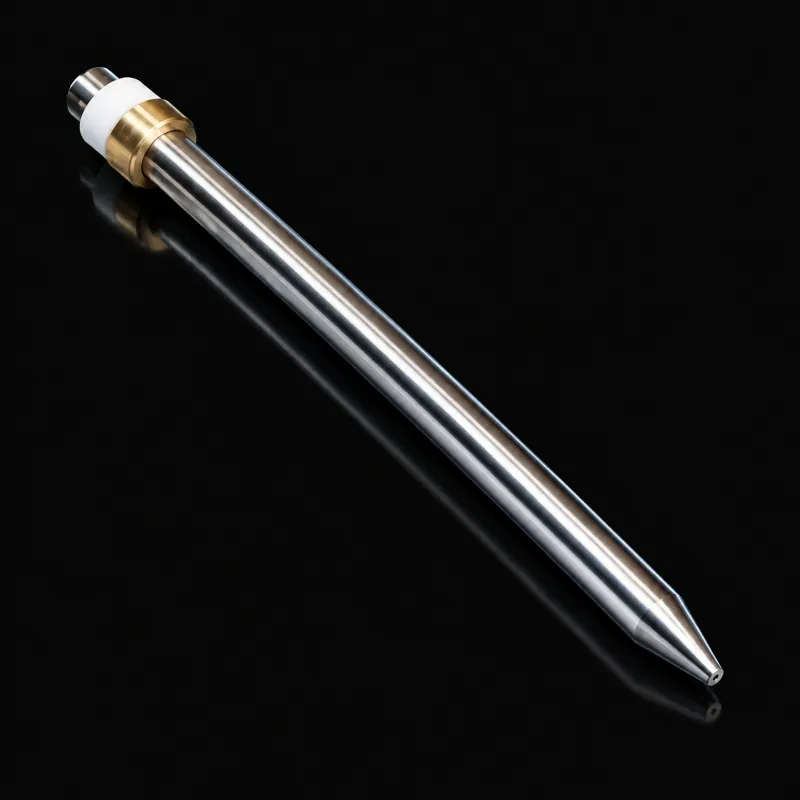

ROCTEC® focusing tube · Accustream
ROCTEC 500 · with locating ring Ø 7.14 mm · 9/32"
Fits Flow.1 · Type
2 · Bore
Bore = inner diameter. Rule of thumb: about 3 × your orifice; a 0.30 mm orifice usually runs with a 0.91–1.02 mm tube.
3 · Length
€ 124.00
per tube, excl. VAT · art. 90034
per tube, excl. VAT · art. 90034
- Outer diameter
- Ø 7.14 mm · 9/32"
- Bore
- 0.89 mm · 0.035"
- Length
- 101.6 mm (4")
- Top end
- Performance locating ring fitted
- Grade
- ROCTEC 500
HP tubing, cut to your length
Autofrettaged high-pressure tubing. Choose size, pressure rating and length. We cut, cone and thread it for you.
1 · Outer diameter
2 · Pressure rating
cm
4 · Coning & thread
Your tube
Outer diameter3/8"
Pressure rating60K · 4,100 bar
Length100 cm
Coning & threadBoth ends coned & threaded
€ 121.00
per tube, excl. VAT · 100 cm × € 81.00/m + 2 × € 20.00 coned & threaded end
Cut, coned and threaded to order. Bent tubes for specific machines are sold as separate parts.
