//Art. 12394
ART. 12394Cutting head

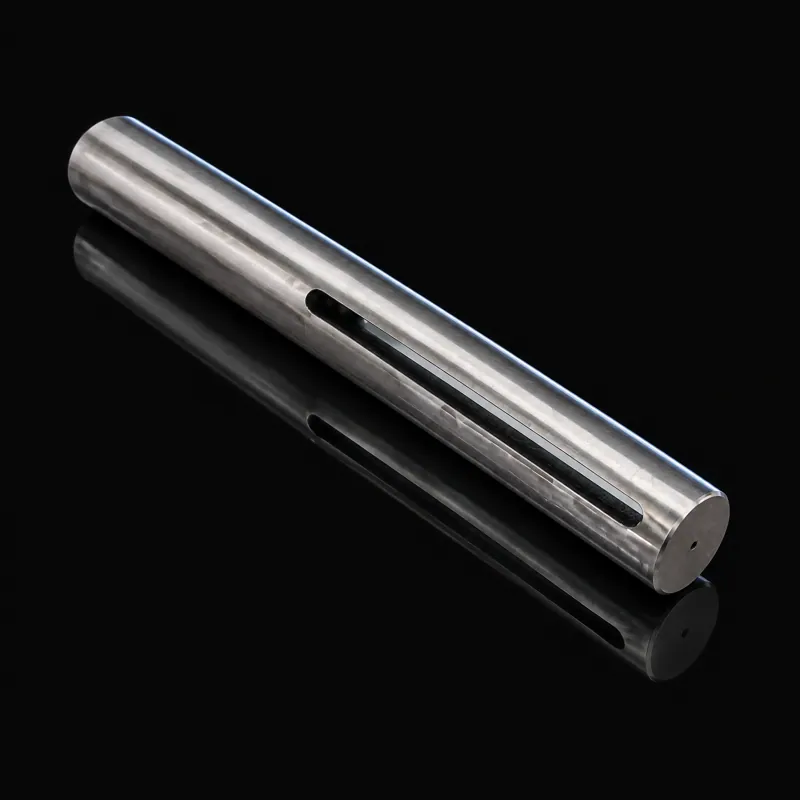

Alignment scout WJS, 9.0 x 0,76 x 76,4
Specification & cross-reference
Replaces OEM part no.—
Other references4
Fits brandsWJS
Fits pump modelsAsk us
AssemblyCutting head
Part type—
Weight—
Full description
The Alignment Scout from IMI allows users to determine whether or not their nozzle is properly aligned before beginning the use of a new nozzle or for testing an older one. It is simple to use: Simply insert the alignment scout as you would your mixing tube and if you see water shooting out the sides of the Alignment Scout you know something is wrong. See attached picture. **This is a water only tool**
Aftermarket part, not an original (OEM) part. Not made or approved by the original manufacturer. Brand names and part numbers only show compatibility.
